Mini Cool Edge (MCIO) Connectors and Cable AssembliesLEARNING LOCKER MODULE
Multiple Circuit Options Offer Increased Flexibility
Explore the latest Learning Locker module to find out more about Mini Cool Edge (MCIO) Connectors and Cable Assemblies.
Product features include:
Multiple circuit options
High-speed capability that meets PCIe standards
Flexible configurations
Explore this module to learn about:
Essential product features and benefits
Product compliance details
Common applications
Watch the new learning module to find out more.
VIEW MODULE
PowerWize Blind-Mate Interface (BMI) 8mm Vertical Headers
Series: 221991
As electronic devices continue to shrink in size, the demand for space-saving connectors significantly increases. The PowerWize BMI Connector family now offers vertical headers to meet customer needs for compact solutions. Vertical headers enhance connector accessibility during assembly and maintenance due to the ease of mating and un-mating, which saves time. For greater design flexibility, PowerWize BMI vertical headers also allow for diverse configuration options in devices.
PowerWize Blind-Mate Interface (BMI) Connectors incorporate Molex’s COEUR socket technology, transmitting high current-carrying capacity through right-angle and vertical headers. Available in three sizes—3.40mm (75.0A), 6.00mm (110.0A) and 8.00mm (185.0A)—the blind-mating design helps ensure proper connections in hard-to-reach and visually obscured spaces.
Download the NPI package to obtain:
Full product details
Product presentation
Markets and applications
Pricing details
Datasheet
Images
DOWNLOAD NPI PACKAGE
Flexible Ground Straps - Adding 90° Bends Options
Series: 207602
Molex has set a new standard in space-saving connections with the latest iterations of general market ground straps. Molex Off-the-Shelf Grounding Jumper Solutions enable safe management of high-power distribution with 90° bends that allow customers to fit these grounding straps into space-constrained systems.
Available in a variety of configurations, including flat ended and with 90° bends, these solutions offer customizable lengths and termination points to fit a multitude of customer applications.
Download the NPI package to obtain:
Full product details
Product presentation
Markets and applications
Pricing details
Datasheet
Images
DOWNLOAD NPI PACKAGE
PowerWize High-Voltage, High-Current 3.40mm Pin and Socket Assemblies
Series: 221597, 221616, 221887, 221888
Leveraging our Coeur socket technology, PowerWize Interconnects offer a 3.40mm size to deliver the power efficiency that is critical for cost management. These high-power connectors are designed for manufacturing flexibility and exceptional electrical performance.
PowerWize 3.40mm interconnects have two mechanically-keyed color options to help prevent mismating cable assemblies. The right-angle and vertical headers are pin-in-paste SMT reflow capable, providing processing flexibility and are touch-proof per UL 60950 to prevent electrical shock if handled while energized. These connectors also feature low-halogen-compliant housings that meet evolving environmental and legislative trends.
Download the NPI package to obtain:
Full product details
Product presentation
Markets and applications
Pricing details
Datasheet
Images
DOWNLOAD NPI PACKAGE
NearStack 100-Ohm Connectors and Cable Assemblies
LEARNING LOCKER MODULE
High-Speed Connectors with Excellent Signal Integrity
Discover how NearStack 100-Ohm Connectors and Cable Assemblies provide a dense, low-profile near-ASIC cabled solution for telecommunications and data center applications, supporting connections up to 56Gbps PAM-4. This high-speed technology ensures excellent signal integrity, enhances design flexibility and reduces system complexity. Manufacturers benefit from the smaller bundle size, which enables better thermal airflow and easier cable routing.
Product benefits include:
Reduces insertion loss for high-speed data applications
Optimizes PCB real estate and simplifies cable routing in space-constrained environments
Delivers secure connectivity for dense installations
Offers robust attachment to the PCB
Explore this module to learn about:
Essential product features and benefits
Industry challenges and solutions
Common applications
Watch the new learning module to find out more.
VIEW MODULE
Easy-On FFC/FPC FS19 - Adding Tin-Bismuth Series
Series: 505278, 200529
Engineered to integrate seamlessly with a variety of cable types, the Easy-On FFC/FPC FS19 series with Tin-Bismuth plating offers an extensive range of circuit counts to meet the diverse needs of several applications. The FS19 series features a generously sized actuator that ensures effortless operation, making it the perfect choice for enhancing productivity and reducing strain on operators. Molex Easy-On FFC/FPC Tin-Bismuth plated FS19 Connector features a front-flip actuator and has a lower height than tin-plated FFC/FPC front-flip connectors.
Download the NPI package to obtain:
Full product details
Product presentation
Markets and applications
Pricing details
Datasheet
Images
DOWNLOAD NPI PACKAGE
Mini Cool Edge (MCIO) Connectors and Cable Assemblies
Series: 215071, 216611, 216612, 217082, 217346
The Mini Cool Edge (MCIO) product family delivers 4x, 8x, 16x and 20x options with high-speed 16, 32 and up to 64 Gbps data rates. MCIO cable assemblies meet PCIe standards in extremely flexible configurations.
What makes this product different from the competitors?
Compared with other I/O product families, Mini Cool Edge (MCIO) connectors and cable assemblies offer increased flexibility by providing multiple circuit options. MCIO connectors and cables were designed specially to be used across many applications. They meet PCIe standards up to PCIe Generation 6 with high-speed data transmission rates. Reliable product quality enables high-volume purchasing for enterprise servers or storage data center customers that expect to transmit data to external device systems across a multitude of protocols.
How does this product/solution create value for our customers?
MCIO anti-slant design and contact protection with optional pull-tab design ensures high-quality signal integrity performance. Customized loose pair and ribbon cables and pin definition are available. They support both cable and edge card applications with one common connector that is available from multiple sources. They can extend the transmission range to over 1.00 meter.
Download the NPI package to obtain:
Full product details
Product presentation
Markets and applications
Pricing details
Datasheet
Images
DOWNLOAD NPI PACKAGE
LEARNING LOCKER MODULE
High-Speed Cable for AI and Machine Learning Applications
Explore the latest Learning Locker module to find out more about the NearStack HD Connector System.
Product features include:
Low-profile, high-density cable solution for space-constrained applications
64 Gbps PAM-4 speeds that meet PCIe Gen-6 standards
Supports AI and machine learning
Explore this module to learn about:
Essential product features and benefits
Product compliance details
Common applications
Watch the new learning module to find out more.
DOWNLOAD NPI PACKAGE
Quasar OptiX Field Mountable Connector (FMC)
Series: 106359
Quasar OptiX Field Mountable Connectors (FMC) are new additions to the existing line of Molex outside plant (OSP) products designed for use in optical connectivity applications subject to outdoor environmental conditions with proven IEC 61300 temperature and vibration performance. FMCs enable installers in the field to quickly and easily install optical connectors on cables, with a minimum of training and tooling.
Download the NPI package to obtain:
Full product details
Pricing details
Images
Product presentation
Solution guide
DOWNLOAD NPI PACKAGE
Pico-Lock Wire-to-Board Connector System - Adding 3.0mm Pitch
The Pico-Lock Wire-to-Board Connector System is ideal for applications requiring ultra-low profile, high-current and secure locking. Notebook and Tablet PCs with large graphic displays continue to get thinner in design and more powerful in functionality. This combination has created a need for a new style of connector that offers a very low profile, high current-carrying capability and a robust positive lock to maintain connection even when subjected to shock or vibration. The Pico-Lock system is the first miniature wire-to-board connector system to combine all these features to meet these needs.
The addition of a 3.00mm-pitch version to the existing Pico-Lock family allows for a more space-efficient design, making it ideal for applications where PCB real estate is limited. This is crucial for modern devices where size constraints are often a priority.
Series: 221113, 221114, 221115
Download the NPI package to obtain:
Full product details
Pricing details
Images
Product presentation
Solution guide
DOWNLOAD NPI PACKAGE
Off-the-Shelf (OTS) DuraClik Pre-Crimped Leads
Molex’s range of pre-crimped leads offers a simple and cost-effective solution for pre-production, prototyping and mass production requirements; these leads are available for the most popular Molex connector families.
DuraClik connectors are designed to improve connection security and provide exceptional stability and performance in high-temperature applications where a smaller connector is required such as automotive LED lighting or consumer white goods.
Series: 227022, 227023
Download the NPI package to obtain:
Full product details
Pricing details
Images
Product presentation
Solution guide
DOWNLOAD NPI PACKAGE
2x1 Magnetic Jacks
The 2x1 Magnetic Jack configuration allows for two ports in a single module, saving space on circuit boards and in devices where space is at a premium. This compact design addresses the need for multiple ports in a single efficient module.
Gold plating on contact areas enhances durability and ensures a longer lifespan. Multiple LED status indicators provide a quick visualization of system status and functionality for improved system reliability.
The magnetic components in the jack help filter and isolate signals, reducing noise and improving overall signal quality. Unlike traditional connectors, which often face signal degradation due to noise and interference, the Magnetic Jack’s design mitigates this issue, ensuring better signal integrity.
Series: 224539
Download the NPI package to obtain:
Full product details
Pricing details
Images
Product presentation
Solution guide
DOWNLOAD NPI PACKAGE
Cat 3 RJ45 In-Line Coupler
Connecting Ethernet cables can often be challenging, particularly when rerouting or replacing cables isn't an option. RJ45 in-line coupler addresses this issue by providing a reliable, standardized, and cost-effective solution. It allows for convenient cable extensions or device swapping, while ensuring compatibility and continuity within the network setup.
Enhanced Connectivity
The RJ45 In-Line Coupler allows for seamless connections between Ethernet cables, extending cable runs without degrading signal quality, which is essential for maintaining reliable network performance.
Versatility
Compatible with a variety of networking applications, the RJ45 In-Line Coupler meets diverse customer needs, making it suitable for both residential and commercial environments.
Durability and Reliability
With its robust construction, the RJ45 In-Line Coupler is built to withstand wear and tear, ensuring long-term performance and reducing the frequency of replacements.
Series: 224461
Download the NPI package to obtain:
Full product details
Pricing details
Images
Product presentation
Solution guide
DOWNLOAD NPI PACKAGE
Premo-Flex Round Flat Cable Jumpers
Enabling the use of flexible cable jumpers in compact applications requiring robust connections, Premo-Flex Round Flat Cable (RFC) Jumpers and RFC Hybrid Jumpers deliver high mechanical strength, reduce costs by eliminating connectors and wire stripping, and improve design flexibility.
Premo-Flex Round Flat Cable (RFC) Jumpers and RFC Hybrid Jumpers are soldered directly to the board by leveraging through-hole wave soldering, eliminating the need for a connector. This provides a secure mechanical bond and improves electrical performance.
Watch the NEW video and add the link to your website.
Series: 15061
Download the NPI package to obtain:
Full product details
Pricing details
Images
Product presentation
Solution guide
DOWNLOAD NPI PACKAGE
HSAutoLink II Connectors and Off-the-Shelf Cable Assemblies
HSAutoLink II connectors and cable assemblies provide a versatile and robust differential-pair connectivity solution for transportation applications including cameras, infotainment systems and telematics devices.
With a variety of customizable high-speed pin configurations, the HSAutoLink II system supports high-speed signaling protocols including USB 2.0, 3.0, 100Base-T1, low-voltage differential signal (LVDS) and others with data rates up to 13.5 Gbps.
Download the NPI package to obtain:
Full product details
Product presentation
Markets and applications
Pricing details
Datasheet
Images
DOWNLOAD NPI PACKAGE

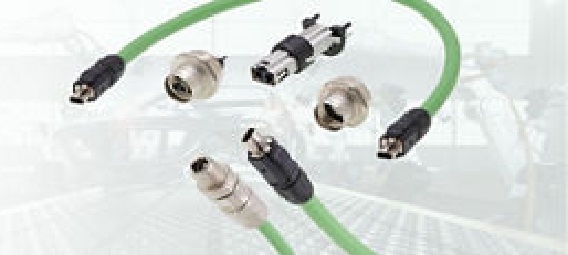

Industrial SPE Connectors and Cable Assemblies afford the standard T1 industrial interface and single-twisted-pair cabling to make Ethernet connectivity easy and affordable, support miniaturization and enable the transmission of data from the cloud to devices and sensors.
Web Overview (EN)
Web Overview (ZH)
I/O Cable Assembilies
Industrial Automation (AI) is at an inflection point. Organizations around the world are well on the way to implementing the technologies that allow them to realize the promise of Industry 4.0. Indeed, the recent State of Industry 4.0 Survey conducted by Molex, determined that 87% of respondents are excited about the transformative power of Industry 4.0 over the next decade. But how do organizations develop smart ways to leverage these advancements as machines leap forward in intelligence and capability?
Press Release (EN)
Press Release (ZH)
Industrial automation systems—including robots, machine-to-machine communications and machine learning—have created the smart factory, which is facilitating faster times to market and improving responsiveness to changing demands.
However, customers who wish to embrace smart solutions face several challenges, not the least of which is harsh environments. But harsh industrial environments also need enhanced functional safety and information security as much as their consumer counterparts. To successfully address these issues, customers require comprehensive connectivity innovations that can deliver high performance and reliability in the toughest conditions.
